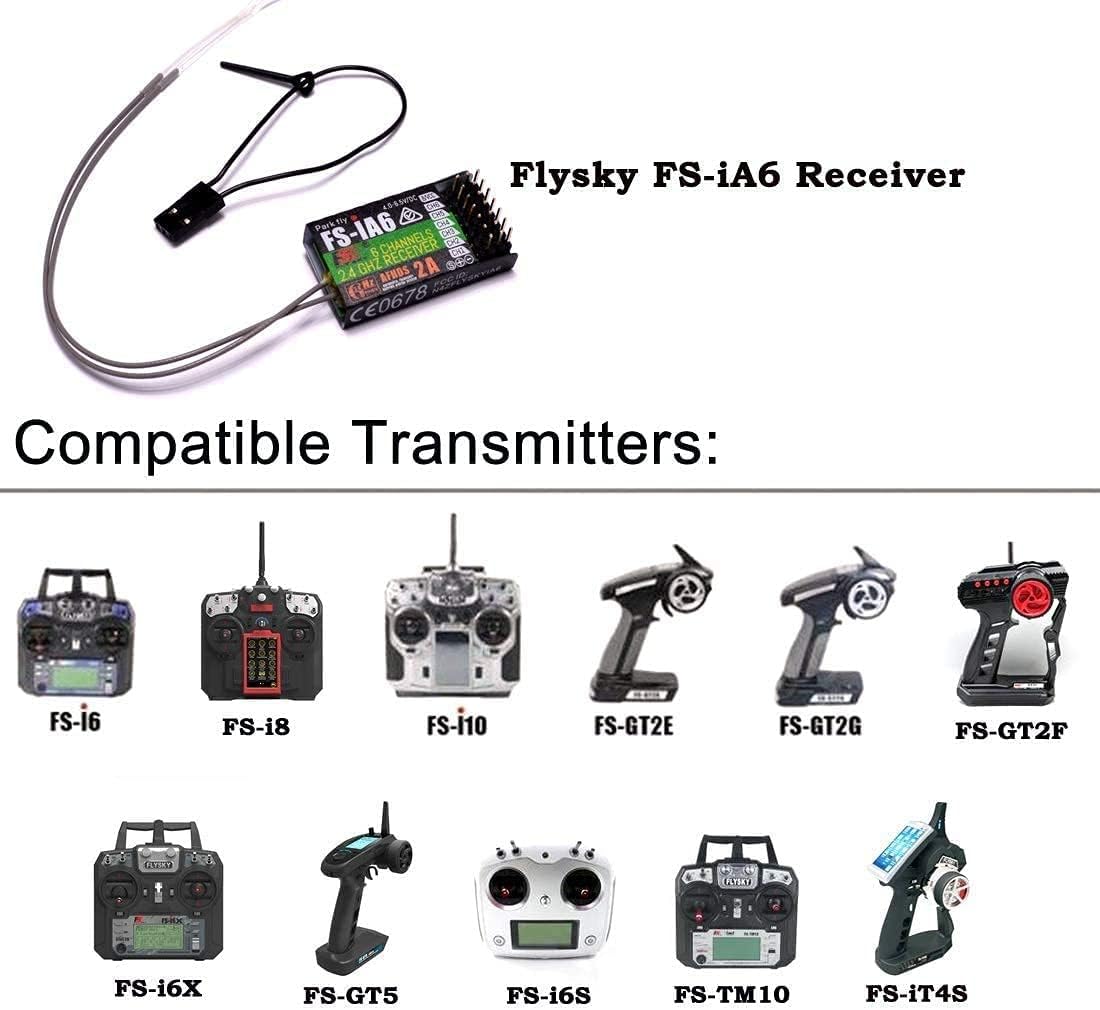

Yangers Flysky FS-IA6 Receiver, 6 Channels 2.4GHz AFHDS 2A RC Transmitter Receiver for RC Transmitter FS I4X I6 I6X I6S GT2G GT2E I8 I10 TH9A GT5 IT4S TM10 Model

Specifications:
Weight: 7g
Number of Channels: 6
Suitable Models: Airplane / Glider / Helicopter
Frequency Range: 2.4 – 2.48GHz
Transmitting Power: 20dBm
Receiver Sensitivity:-105dBm
RSSI: Supported
Data port: PWM / PPM / i.bus / s.bus
Encoding: GFSK

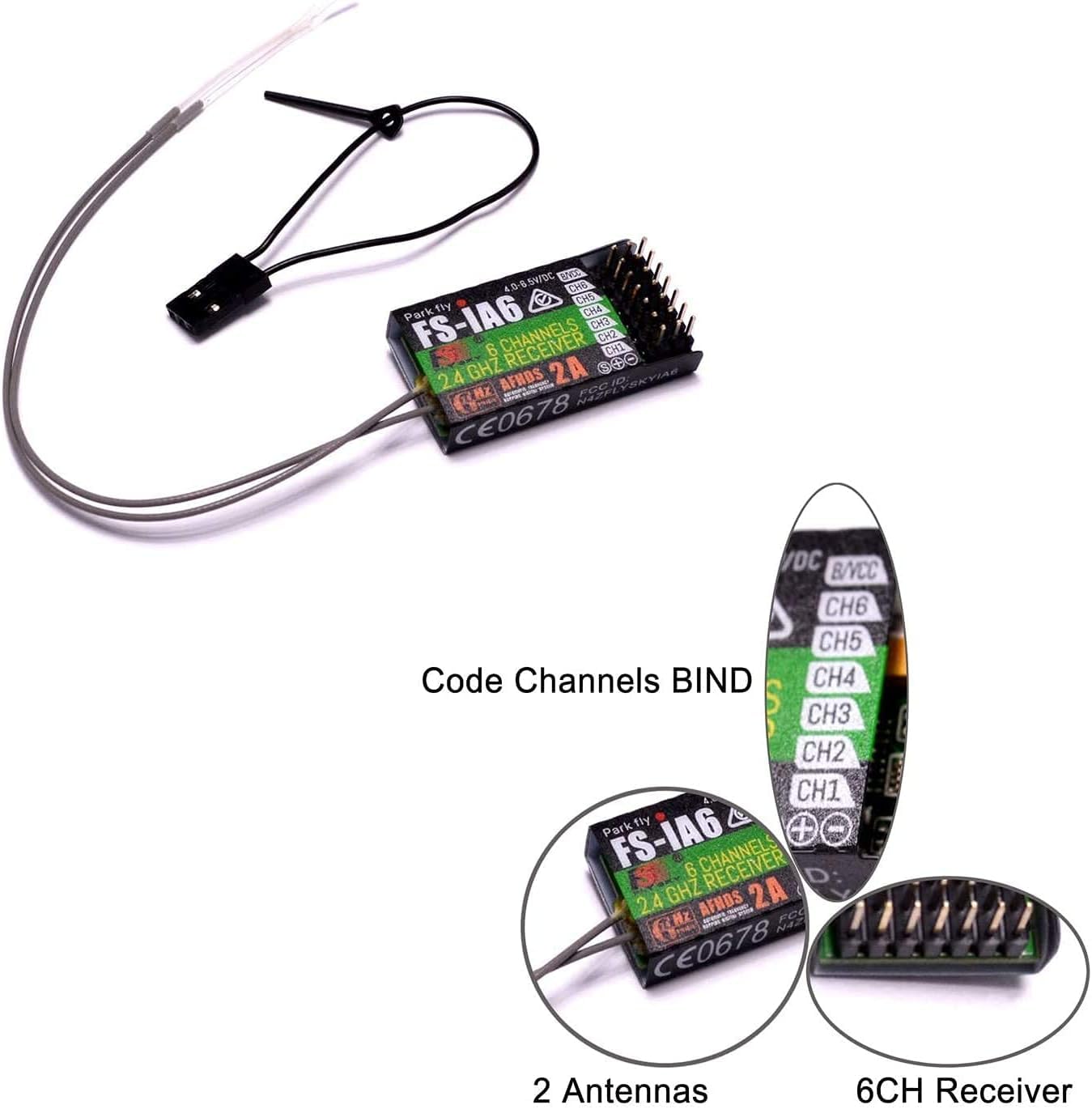

Antenna Length: 26mm × 2 (Dual Antennas)
Input Power: 4 -6.5V DC
Certification: CE0678, FCC
i-BUS Port: No
Data Acquisition Interface: Yes

Package Including:
1x FS-iA6 Receiver
1x Bind Cable

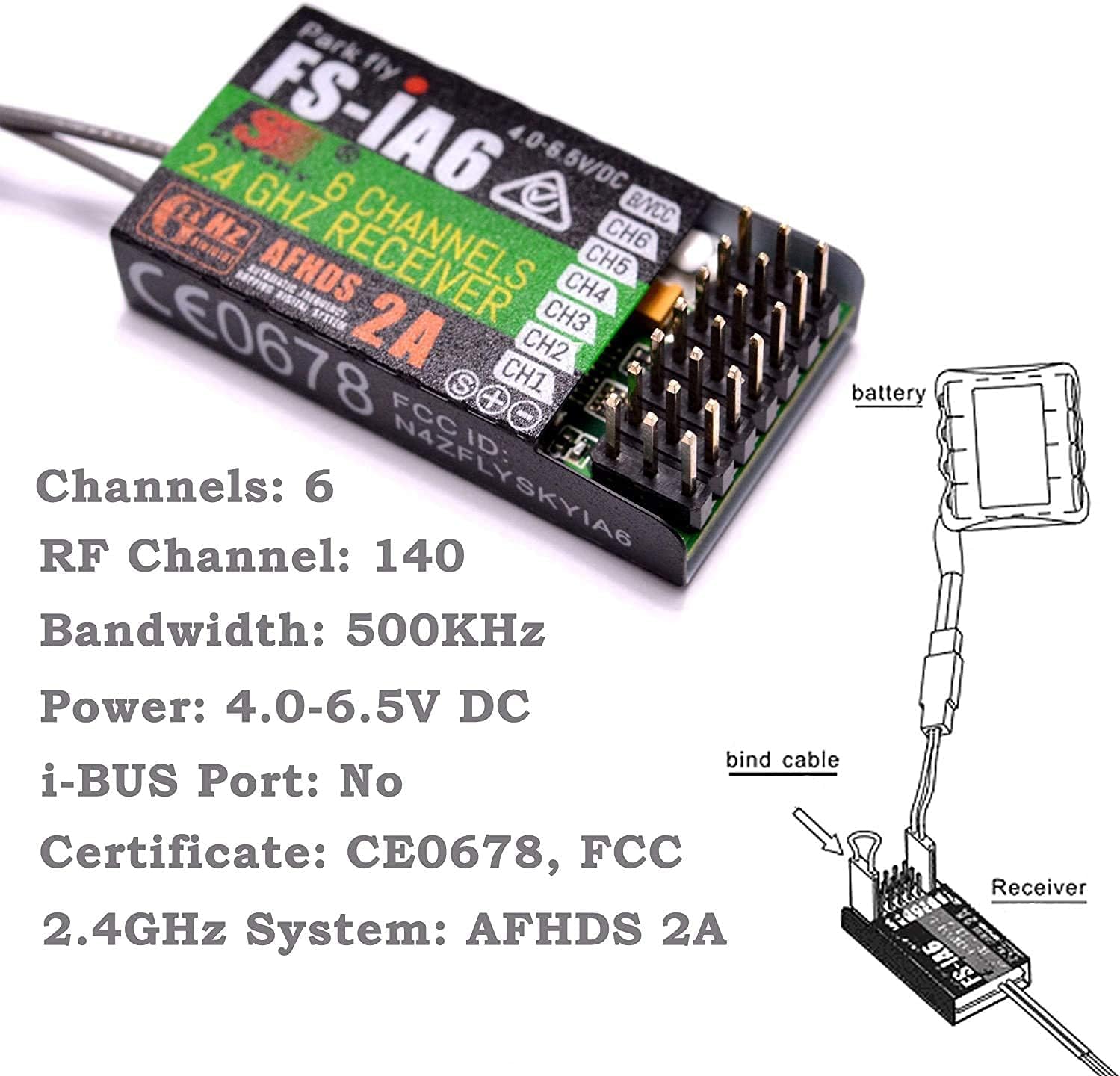

How to Matching(bind)
A. Install the battery to 2.4G transmitter and shut it down.
B. Insert the matching lines to the channel BIND/CH3 port of the receiver.
C. Connect the receiver battery to VCC port of the receiver, on the same time the two LED are flashing and this means the receiver are going to the matching status.
D. Press and hold the button on the transmitter, and then switch on the power supply.
E. Observe the LED on the receiver, if find that the LED is not flash anymore and that means successful Matched. (This process about 5s)
F. Release the match button on the transmitter, take out the match line.
G. Install the server and then test.
H. If the tests fail, please repeat the action above.
I. If the tests success, then insert the power supply port into VCC, match complete. (The above ways of match is only suitable for FLYSKY 2.4G products)
