The 25kg metal gear digital servo motor is the ultimate solution for high-performance robotics and remote control applications. With an exceptional torque capacity of up to 25kg, it can handle the most demanding tasks, making it ideal for RC helicopters and robotic projects. Constructed with durable solid copper metal gears, this servo motor ensures reliable and long-lasting performance. 270° rotation capability allows for precise movement, giving you the control you need. Easy integration with Arduino and other microcontrollers makes it ideal for hobbyists and engineers. Whether you are developing a remote controlled car, boat or helicopter, this servo motor is an essential part of your toolbox.
parameter:
Electrical Specifications:
Operating Voltage Range: 4.8-6.8V
Working speed (5.0V): 0.15 seconds/60 degrees
Working speed (6.8V): 0.13 seconds/60 degrees
Locking Torque (5.0V): 21kg/cm
Locking Torque (6.8V): 25kg/cm
Control Specifications:
Control system: PWM (pulse width modulation)
Pulse width range: 500-2500μs
Neutral position: 1500μs
Working angle: 180° (at 500-2500μs)
Width of dead zone: 3 μs
Working frequency: 50-330Hz
Rotation direction: counterclockwise (500~2500μs)
Gear ratio: 275
Bearing: double
Bearing connection cable: 285 mm (11.2 in)
Specification:

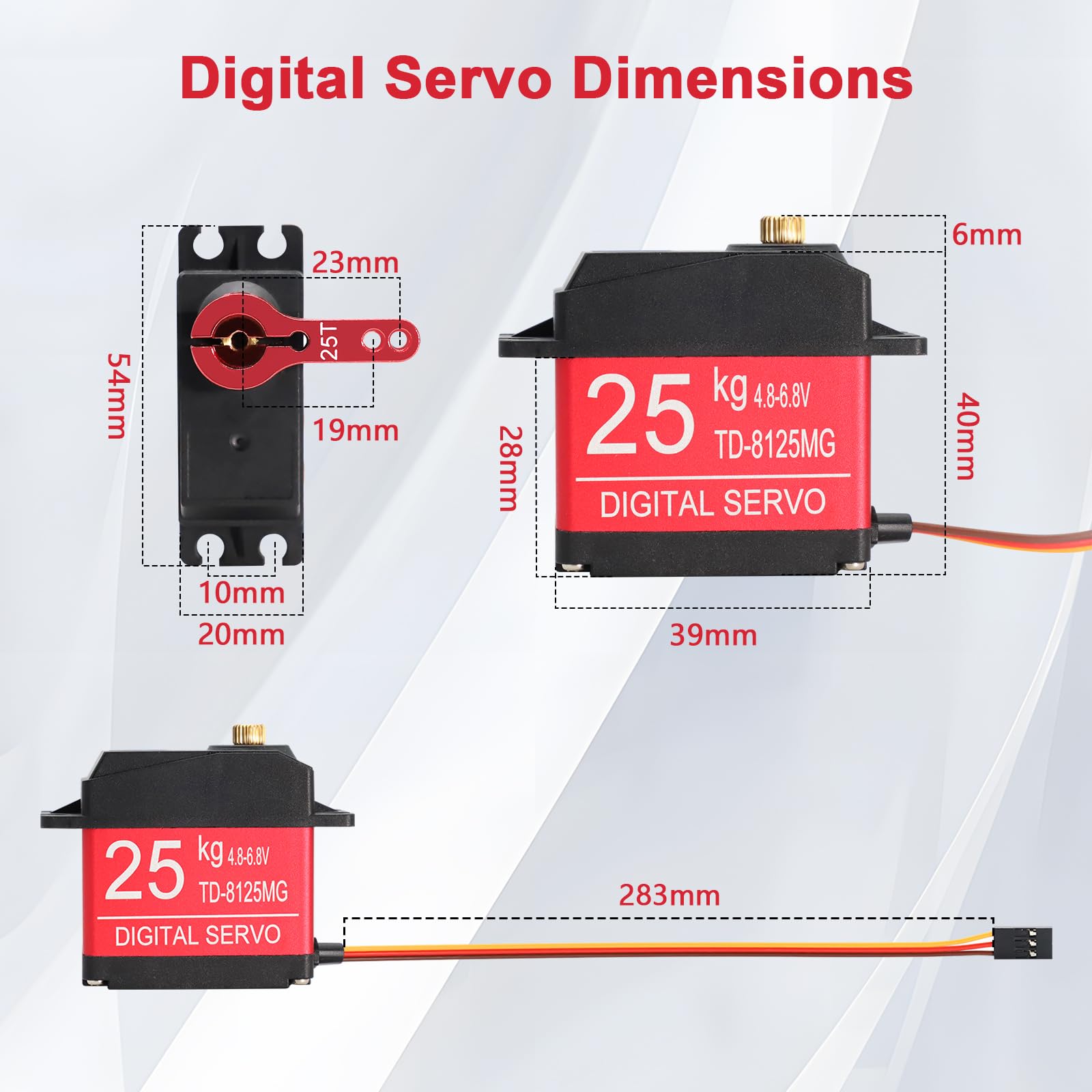

Measures 40mm length x 20mm width x 40mm height
Products include:
1 x 25kg Metal Gear Servo
25 kg Servo Digital Metal Servo Motor AYWHP 1 x 270 RC Servo Motor for RC Helicopter, Robots, Car Boat
$78.99

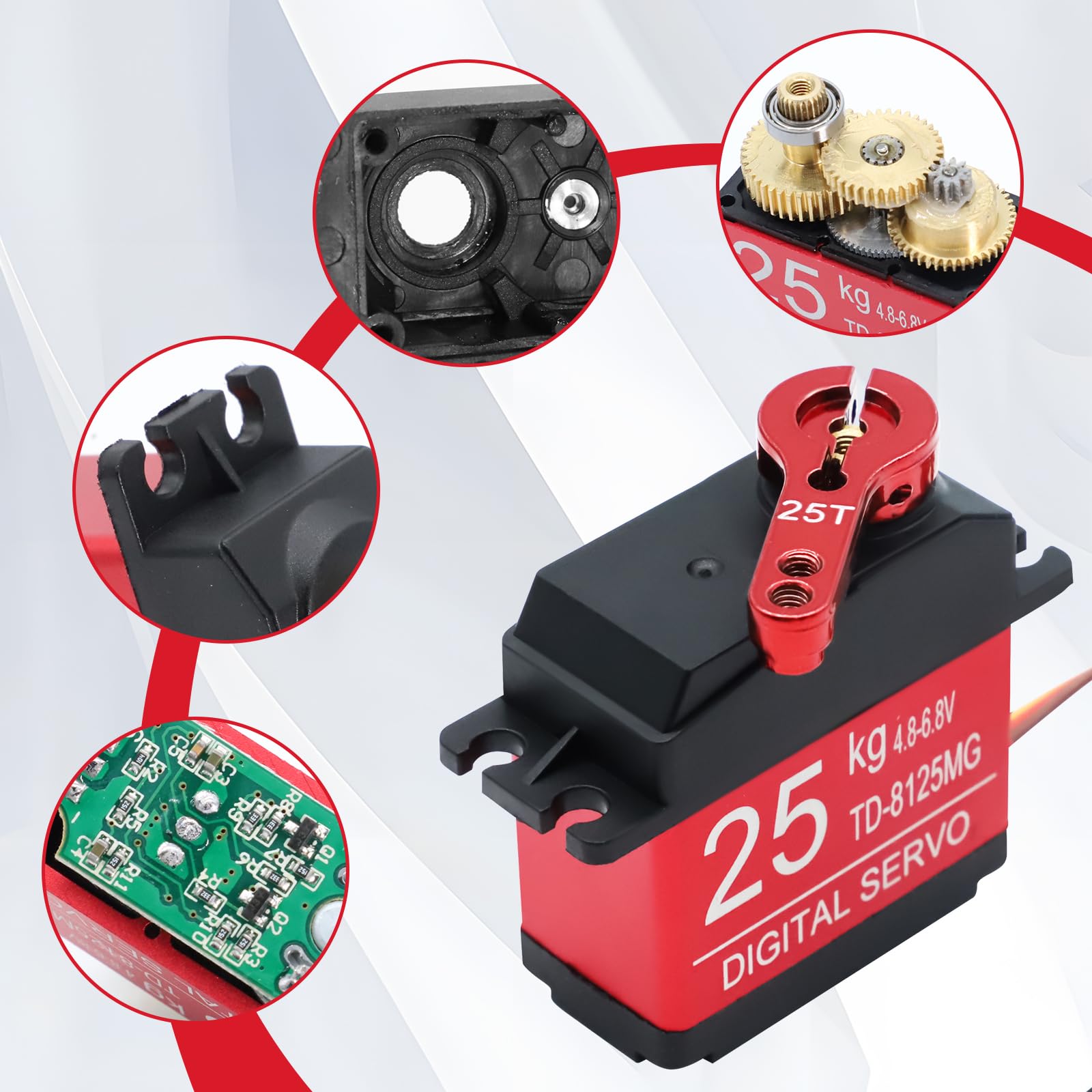

- Powerful TorqueEquipped with high quality all-copper metal gears, providing up to 25kg of torque to ensure precise control and powerful performance of RC aircraft, helicopters, robots, etc.
- Flexible Control 270 wide angle rotation provides flexible motion control for robotic arms, robotic projects or remote-controlled high-end vehicles.
- Precise ControlUsing digital control system to ensure stable and accurate operation, providing smooth and fast response control with low jitter and low latency.

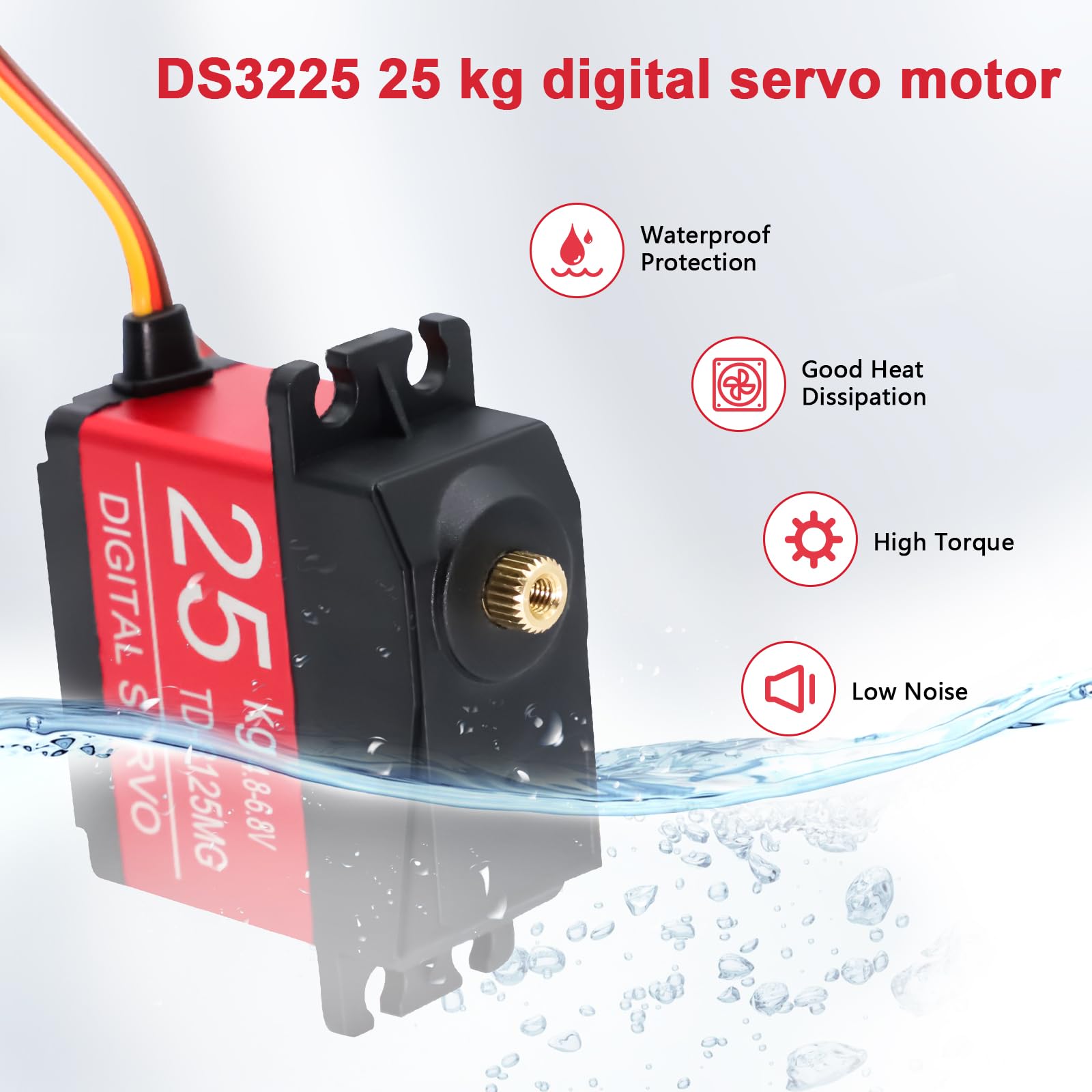

- IP66 WaterproofThe digital servo is made with high precision, fully sealed and has an IP66 waterproof rating, so it can work normally even if it is splashed with water.
- Wide ApplicationSuitable for RC cars, racing cars, airplanes, drones, robotic arms, climbing cars, boats, climbing cars, planes, smart cars and DIY robots, etc.
Additional information
| Weight | 0.08 kg |
|---|---|
| Brand | AYWHP |
